LCD Screen 200rpm Digital Adhesion Meter With RS232 Interface

  • 1
  • 2

Brand Name : SKYLINE

Model Number : SL-T14

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : negotiated

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 10 unit/ month

Delivery Time : 20 working days

Packaging Details : Plywood case

Speed : 0.3 ~ 200rpm

Measurement range : 100 mPa•s~2×105 mPa•s

Rotor speed : (5,10,20,50)r/min

Measurement error : ±1% (F•S)

Temperature control range : 45 ℃~200 ℃

Temperature control accuracy : ±0.1 ℃

Contact Now

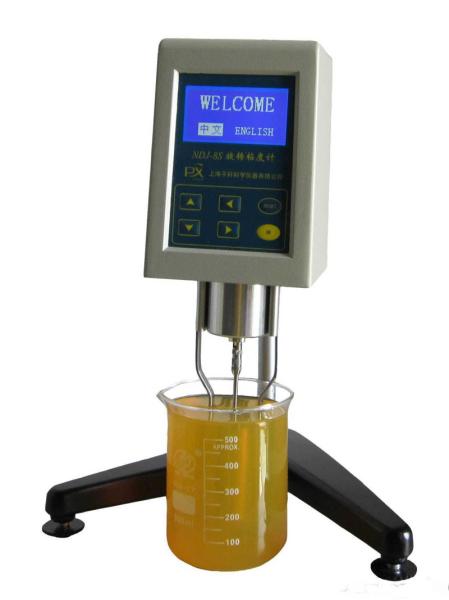

Digital Adhesion Meter

Detailed parameter

Sheen new digital adhesion meter fast, effective and accurate measurement of viscosity, provides an ideal solution, it is easy to use, wide application, can be used for detection of various liquids. Measurement of torque, rotational speed can be displayed, rotor model, and the results calculated viscosity.

Characteristic
1. Speed from 0.3 ~ 200rpm
2. LCD screen can be clearly shown from the choice of operating parameters
3. Installation of new equipment slowed the rate improved to prevent dramatic changes in the rotor torque with platinum
4. Platinum probe can measure temperature.
5. Interface options / software records
6. Input density can test the kinematic viscosity range
7. Automatically display range
8. Can store 10 user-defined test set

9. 8 languages selectable

10. When the reading in the full scale and below 15% will alarm

Technical parameters

Measurement range 100 mPa•s~2×105 mPa•s (If you select the No.30 spindle, the measurement range can be extended to 4×105 mPa•s)
Rotor Specifications No.21, 27, 28 and 29 total 4 pieces of spindles (the No.30 spindle is optional)
Rotor speed (5,10,20,50)r/min
Measurement error ±1% (F•S); (If you select the No.30 spindle, it will be ±3% (F•S)
Temperature control range 45 ℃~200 ℃
Temperature control accuracy ±0.1 ℃
Sample cylinder 20ml
Print output Needle printer
Communication with the PC RS232 interface
Power supply AC 220V±10%, 50 Hz
Ambient temperature 5 ℃~35 ℃ (when the controlling temperature is close to ambient temperature, please run the air conditioner to let the ambient temperature be 5 ℃ lower than the controlling temperature)
Relative humidity ≤80%

Digital Adhesion Meter.pdf
